  5. Aluminium Bath feet CAD Reverse engineering example
Chrome Bath feet CAD Reverse engineering example

Aluminium Bath feet CAD Reverse engineering example

This is another example related to 'Non-contact 3D scanning'; once we got a watertight STL file of bath foot we have converted the 3D mesh (polygons based) into a new CAD 3D model (STEP file). Here are some pictures of the workflow. For more information regarding our 3D scanning & Reverse Engineering services Get in touch.

* For this particular project we used a Structure Light 3D scanner with a medium-size field of vVew (300mm FOV, 4 Megapixel Camera Resolution)

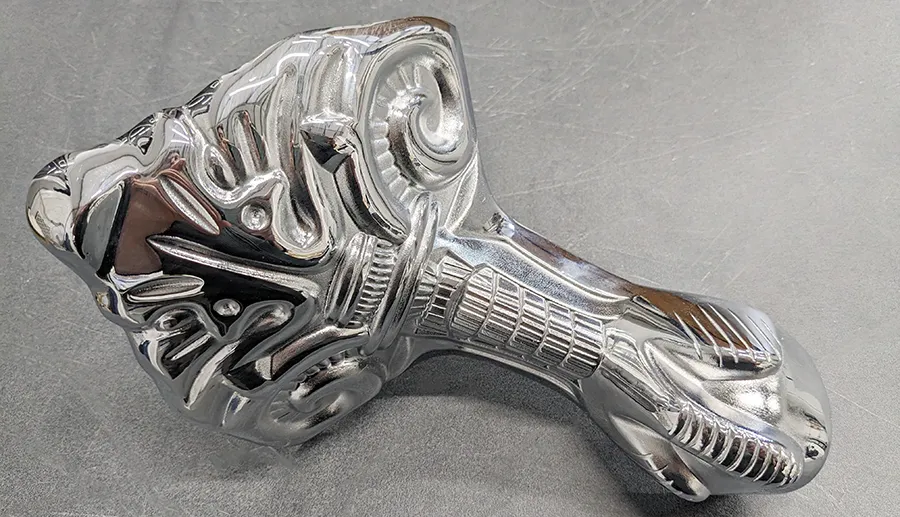

Traditional Bath Feet, Chrome (Physical Part)

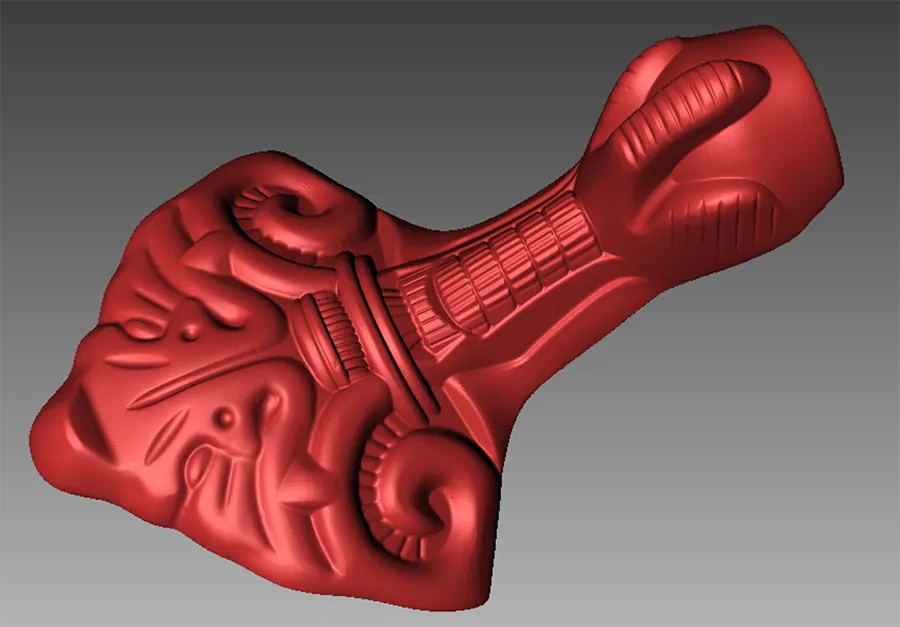

3D Scan data (Watertight STL file)

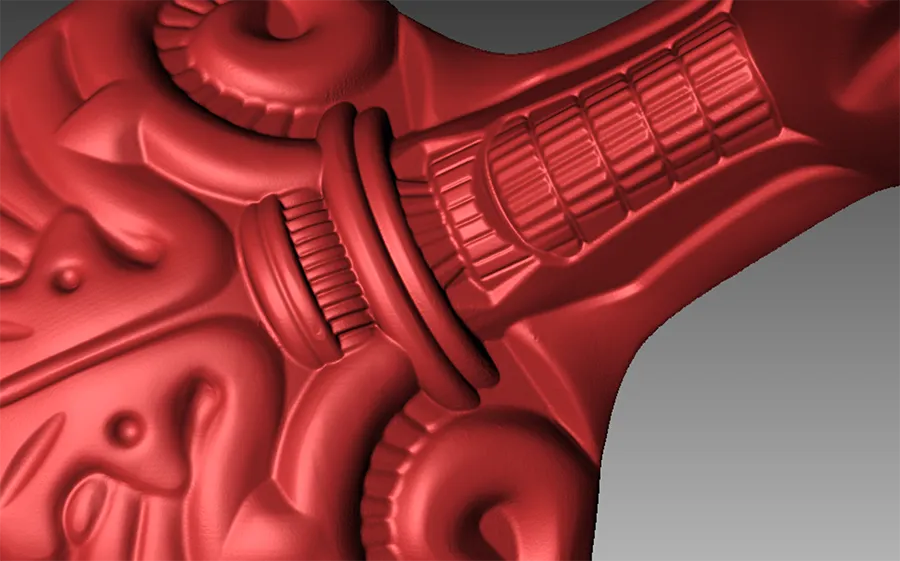

3D Scan data close up (Front View)

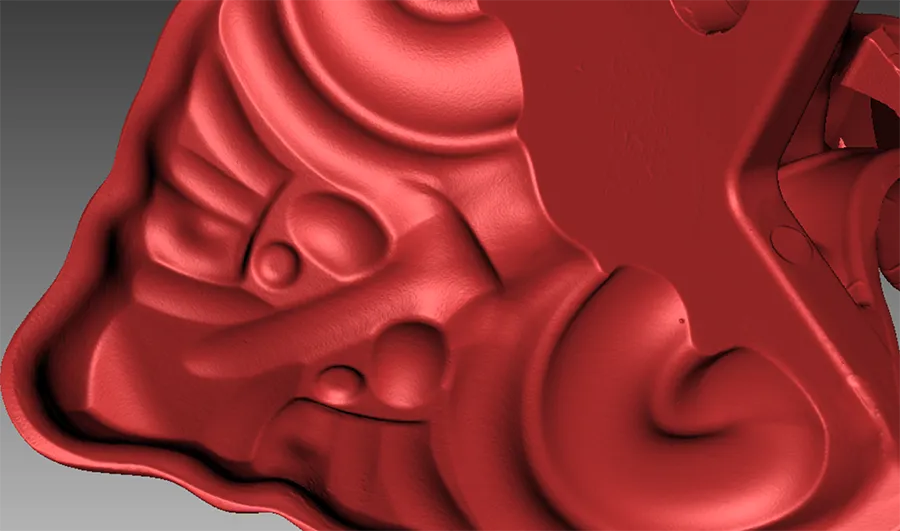

3D Scan data close up (Back View)

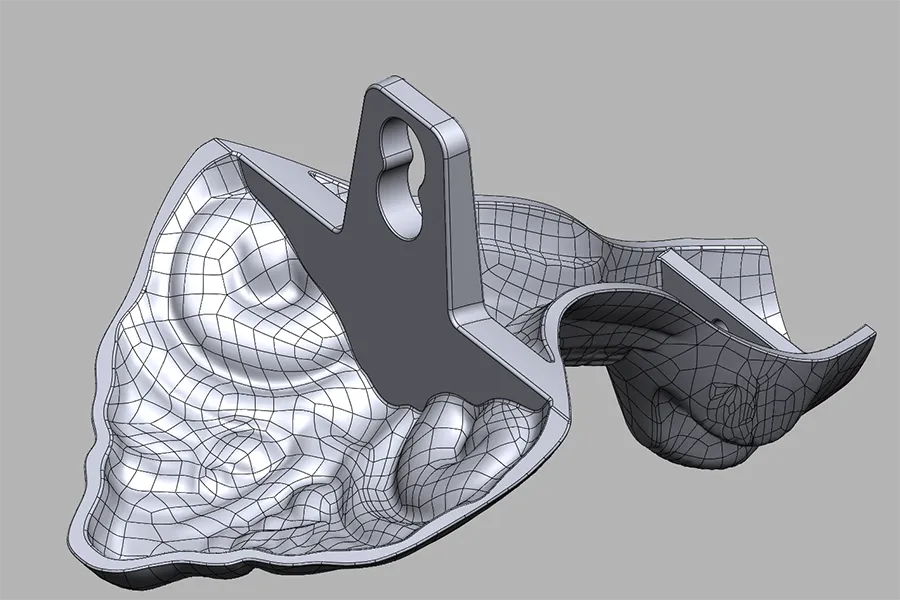

From 3D Scan to CAD (Hybrid Reverse Engineering, STEP file Generation)

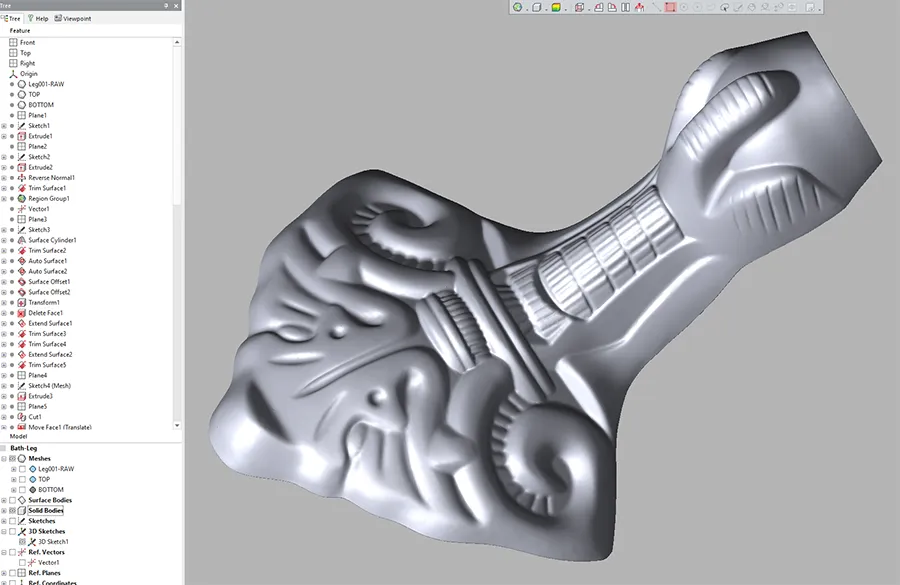

Full parametric Reverse Engineering

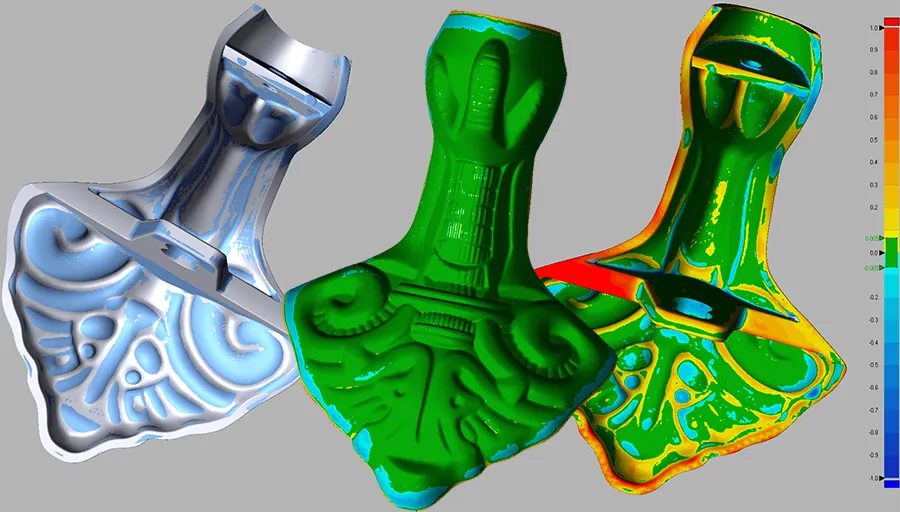

3D Scan Vs. CAD Redesign (Deviation Analysis)
